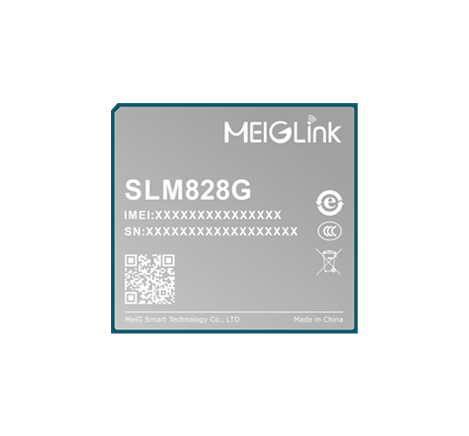

MeiG SLM828G is a series of LTE Advanced category 6/12 module optimized specially for M2M and IoT applications.
SLM828G designed in an LGA form factor, which supports LTE-TDD/LTE-FDD/WCDMA 3 modes.Adopting the 3GPP Rel.12 LTE technology, it delivers M2M-optimized speeds of 600Mbps downlink and 150Mbps uplink peak data rates.
SLM828G supports Qualcomm® IZat™ location technology Gen9HT-Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as 4G router, CPE, wireless POS terminal, consumer laptop, industrial PDA, rugged tablet PC and video surveillance.
Main advantages:
● SLM828G has a maximum downlink rate of 600Mbps and a maximum upstream rate of 150Mbps.
● Support DL 2CA，3CA
● Qualcomm® IZat™ Gen 8C engine,Support GPS/GLONASS/BeiDou/Galileo
● Support Voice Codec (HR/FR/EFR/AMR/AMR-WB)，Support SRLTE/CSFB/VOLTE (optional）
● USB2.0/USB3.0 High Speed Interface
● TCP/IP Embedded Protocol Stacks
| Basic Attributes: | |
| Product number: | SLM828G module |

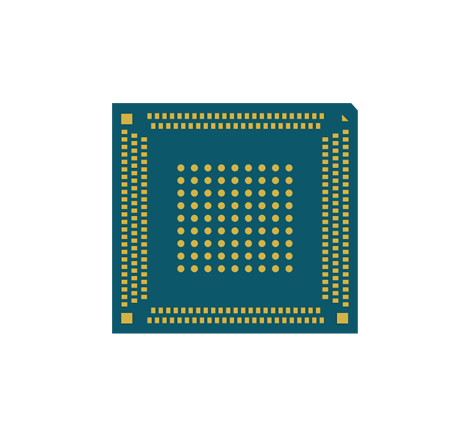

| Package: | LGA package 299-pin |
| Size(mm)： | 37.0×39.5×2.8mm |
| Weight: | < 10g |
| Module Rate: | |
| LTE-FDD (Cat.6)： | LTE：UL：50Mbps DL：300Mbps |
| WCDMA： | UL：11Mbps DL：42Mbps |
| LTE-FDD (Cat.12)： | LTE：DL：600Mbps UL：150Mbps |
| WCDMA： | UL：11Mbps DL：42Mbps |
| TX Power： | |
| WCDMA： | 23.5dBm±2dBm |
| LTE FDD： | 23.0dBm±2dBm |
| LTE TDD | 23.0dBm±2dBm |
| MIMO： | 2 × 2, 4 × 2, 4 × 4 DL |
| GNSS: | GPS/GLONASS/BeiDou/Galileo/QZSS |
| Module Interface: | |
| SIM Card: 1.8V/2.85V | |
| USB 3.0/2.0 | |
| UART | |
| GPIO | |
| PCIe | |
| I2C | |
| PCM/I2S | |
| ADC | |
| SDIO | |
| SPI | |
| Antenna:Main/Div/GNSS/MIMO | |
| Function： | |
| SMS : MO/MT Text and PDU modes | |
| DHCP/TCP/UDP/IPv4/IPv6/PPP/ECM/RNDIS/GobiNet/QMI_WWAN | |
| DFOTA/FOTA | |
| VoLTE/Audio/Recording/BIP | |
| GNSS/LBS/CellID | |
| Driver： | |
| Linux/ Android/Windows | |
| Environmental Temperature: | |
| Normal Operation: | -30~+75°C |
| Normal Operation: | -30~+75°C |
| Storage Temperature: | -40~+90°C |
| Approvals： | |
| Carrier: | TBD |
| Regulatory:: | CE (Europe) RCM (Australia/New Zealand) FCC |
| Others: | RoHS Compliant |
